A simple field check
How Much Water Does This Tap or Hose Deliver?

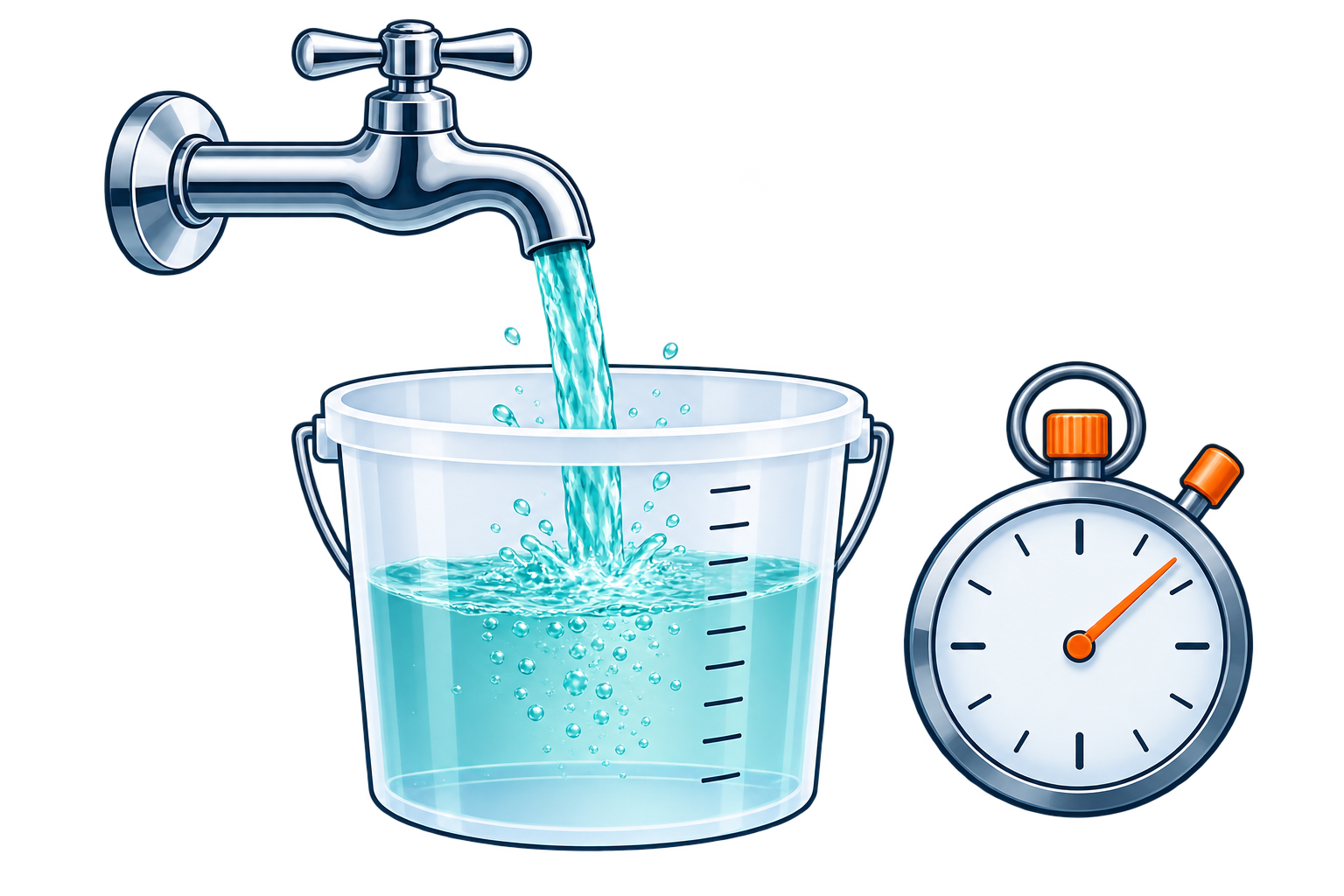

A timed collection test measures the water this outlet delivers right now. Fill a container with a known volume, time the fill, and repeat the test with normal household demand running if you need to see how shared supply affects the result.
Choosing a tankless water heater? Use the Water Heater Size Calculator to estimate its required hot-water flow and temperature difference. A bucket test at a mixed fixture is not automatically the flow a heater must provide.
Use the timed collection testFor a known pipe
See Flow from Pipe Size and Water Speed

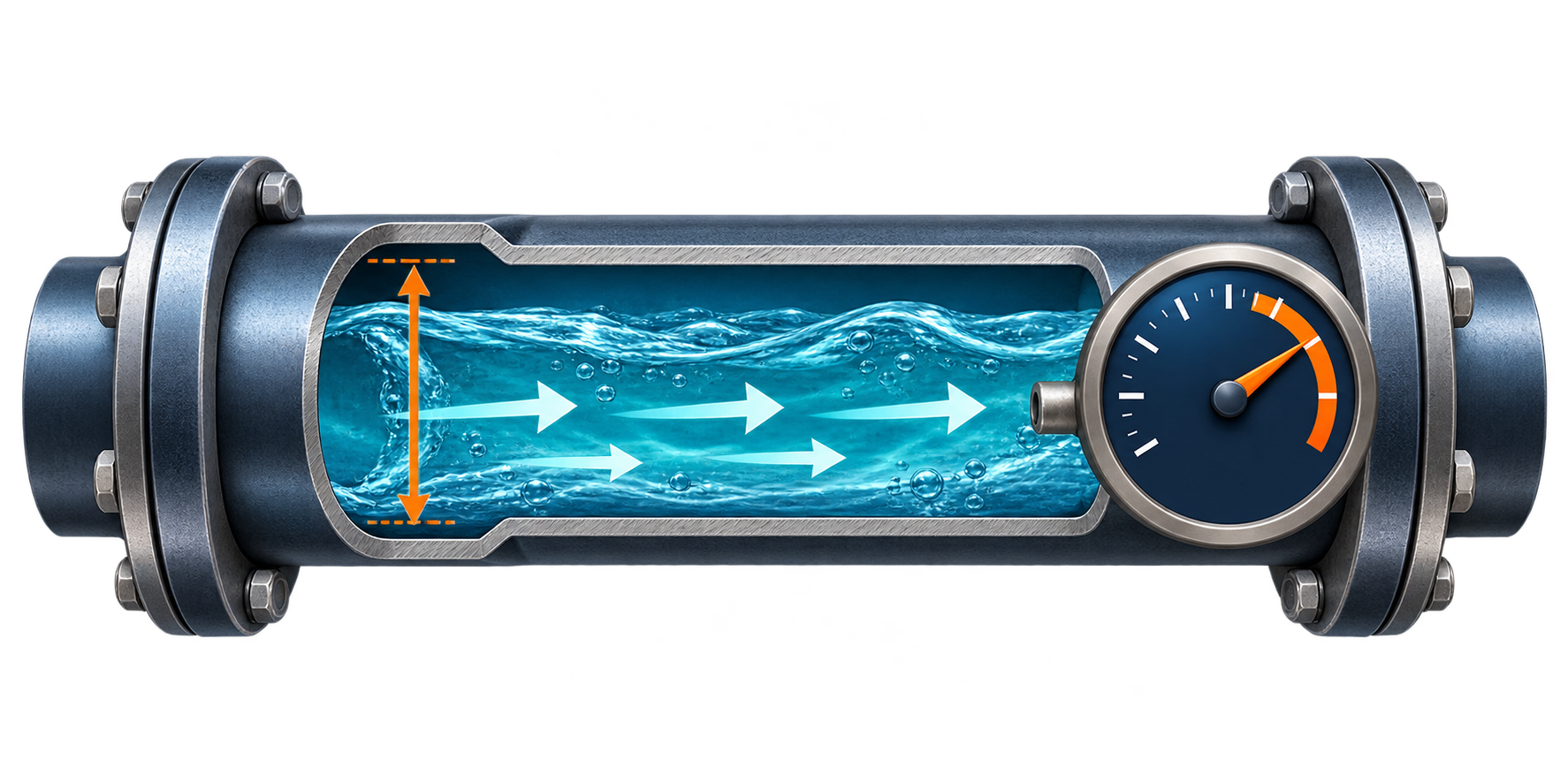

This is a pipe-flow check, not a field test. Enter the pipe’s actual inside opening and its average water speed to estimate how much water can move through it. Choose the pipe family when you can, because wall thickness changes the opening.
Use pipe and velocityFor a longer pipe run
Why Water Flow Can Drop Even When Pressure Seems High

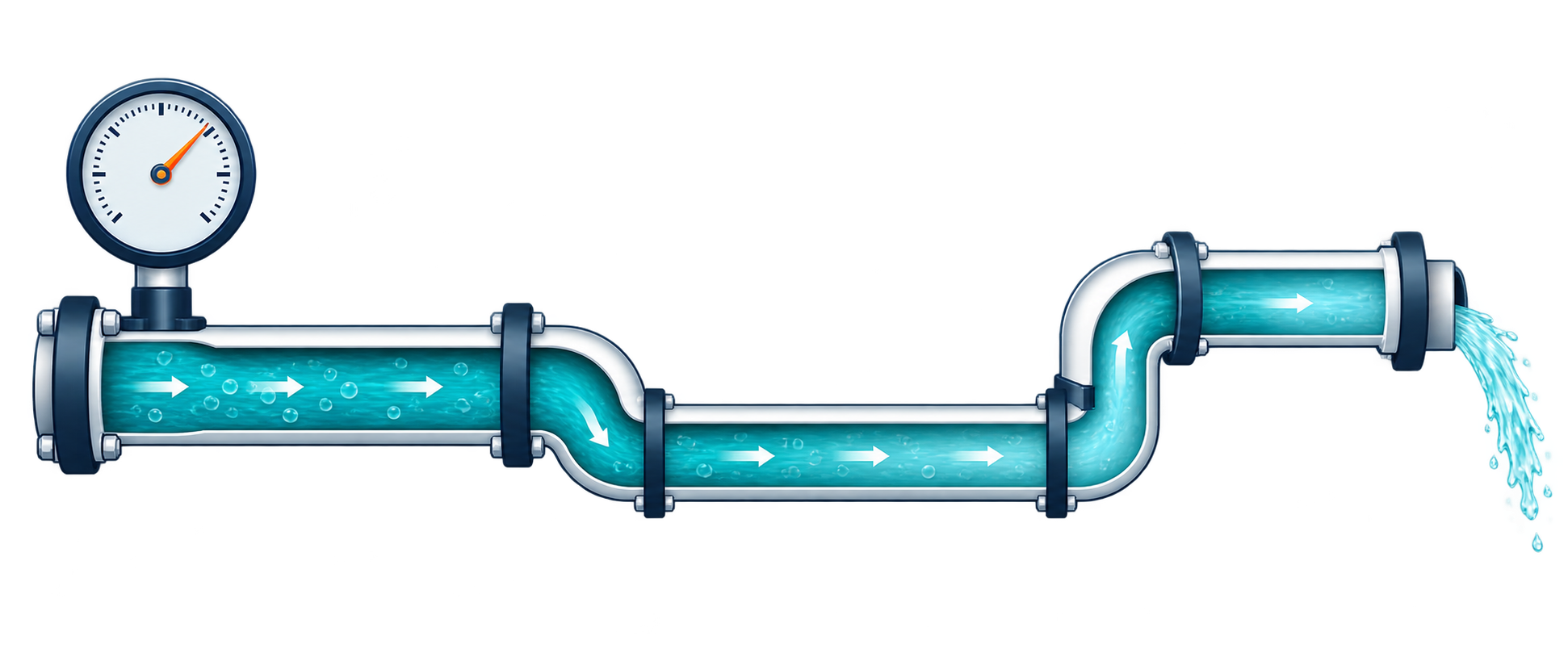

Pressure is the push that moves water, but the route can use much of it before water reaches the end. A long or narrow pipe, bends, valves, filters, and a higher outlet all leave less pressure available for flow. Use this check when you know the pipe route and pressure readings to estimate what the end of that run can deliver.
Use the pipe and pressure checkWorked examples
Water Flow Examples
| Question | Inputs | Result | What to do with it |
|---|---|---|---|
| How much water is this hose or tap delivering? | 5 gal collected in 30 seconds | 10 GPM at that outlet | This outlet delivered 10 GPM with a 5-gallon container filled in 30 seconds. Repeat the same test while expected simultaneous demand is running if that is the condition you need to plan for. |
| How much can this pipe carry at a known speed? | 1 in PVC Schedule 40, 1.049 in actual ID, at 5 ft/s | About 13.5 GPM | This is a pipe-flow estimate at the entered speed. Use the Pipe Size Calculator when you need to choose a pipe for a required flow. |
| Can this example pipe run deliver water at the entered conditions? | 1 in Copper Type L, 1.025 in actual ID, 100 ft, 60 psi start, 55 psi outlet, 5 ft rise, no fitting or device loss | About 15.2 GPM at 5.9 ft/s | This is a calculated velocity, not a code check. Add actual fitting and device losses before relying on an installation decision. |
Use the right next tool
Need to Choose a Pipe Size?
Once you know the flow a new pipe needs to carry, use the Pipe Size Calculator to compare actual pipe openings and water speed. A measured bucket-test result describes one tested outlet; it is not automatically the design flow for an entire system. Planning a group of fixtures? Estimate demand with the Plumbing Fixture Calculator first.
Technical details and formulas
The timed test divides collected volume by fill time. The pipe-and-velocity method uses the pipe’s actual inside opening and average water speed. The pressure method uses Hazen–Williams to estimate friction in a full, pressurized water pipe.
Timed volume
Flow (Q) equals collected volume (V) divided by fill time (t): Q = V ÷ t. The result then converts to GPM, L/min, L/s and GPH.
Pipe and velocity
Q = A × v and A = πD² ÷ 4. Q is flow, A is the pipe’s inside area, v is average water speed, and D is the actual inside diameter.
Pipe and pressure
Hazen–Williams estimates friction: hƒ = 4.52LQ¹·⁸⁵ ÷ (C¹·⁸⁵d⁴·⁸⁷) in common US units. Here, L is equivalent length, C is the selected roughness coefficient, and d is inside diameter.
Quick answers
Water Flow Rate FAQs
Should I run other fixtures while I test a tap?
Test the situation you are trying to understand. Leave other fixtures off to measure that outlet on its own. Turn on the shower, dishwasher, irrigation, or other likely demand if you want to know how the outlet performs when the system is busy.
What size container gives the most useful bucket-test result?
Use a container with a volume you can trust and a fill time long enough to time comfortably. A larger container or a repeated test usually gives a steadier result than trying to time a very fast fill in a small container.
Can I use one bucket test to size a new pipe for the whole house?
No. A bucket test tells you what one outlet delivered during that test. A whole-house or branch-pipe decision needs the flow the new run is expected to carry, which can include more than one fixture. Use the Pipe Size Calculator once that required flow is known.
Why can two pipes with the same printed size give different flow results?
The printed size is a trade size, not the opening water travels through. Pipe material and wall thickness change the actual inside diameter. Select the installed pipe family when you know it, or enter a measured inside diameter.
What length should I enter for the pressure option?
Enter the developed pipe run from where pressure is available to the outlet or point you are checking. Include the pipe route, not the straight-line distance. Add a fitting allowance when bends, valves, meters, or similar restrictions are part of the run.
Why is the pressure estimate different from a bucket test?
A bucket test measures a real outlet at one moment. Pressure mode calculates a known pipe run from the values you enter. Differences in the actual pipe, restrictions, pressure readings, or other water use can make the two results different.
Should hot water be tested separately?
Yes, when you are checking a hot-water fixture or branch. The hot side can have a different route, pipe size, heater, mixing valve, or restriction, so it may not deliver the same flow as the cold side.
Limits and sources
Methodology & References
Pipe-dimension links and calculation assumptions reviewed September 2026. Report a correction.
| Data or method | Source and how this calculator uses it |
|---|---|
| Volume conversions | NIST Guide to SI conversion factors. This calculator uses 1 US gallon = 3.785412 liters. |
| Copper Type L and M dimensions | Copper Development Association - Copper Tube Handbook technical data. Used for the selected copper pipe’s actual inside diameter. |
| PEX SDR 9 dimensions | Plastics Pipe Institute - PEX Plumbing Distribution Systems Design and Installation Guide, third edition (2026). Used as the PEX SDR 9 dimension basis. |
| PVC and CPVC dimensions | Charlotte Pipe Plastics Technical Manual supplies the PVC Schedule 40 pressure-pipe basis. Charlotte Pipe FlowGuard Gold CPVC CTS SDR 11 submittal supplies the CPVC CTS SDR 11 basis. Confirm the installed product before relying on a result. |
| Pressure estimate | Copper Development Association pressure-system sizing guidance. The Hazen–Williams check uses C=140 for copper and C=150 for PEX, PVC, and CPVC as transparent planning assumptions, not condition-specific product ratings. |
