Plumbing Calculators

Choose the plumbing problem you are solving. Size a water-supply pipe from known flow, size a natural-gas line from its connected appliance load, calculate pipe-trench volume, calculate water flow, set drain fall, estimate water-heater capacity, or turn a fixture list into plumbing demand. Each tool keeps its calculation separate and shows how the result was reached.

Start with what you know Compare practical options Check the assumptions

Choose a part of the system

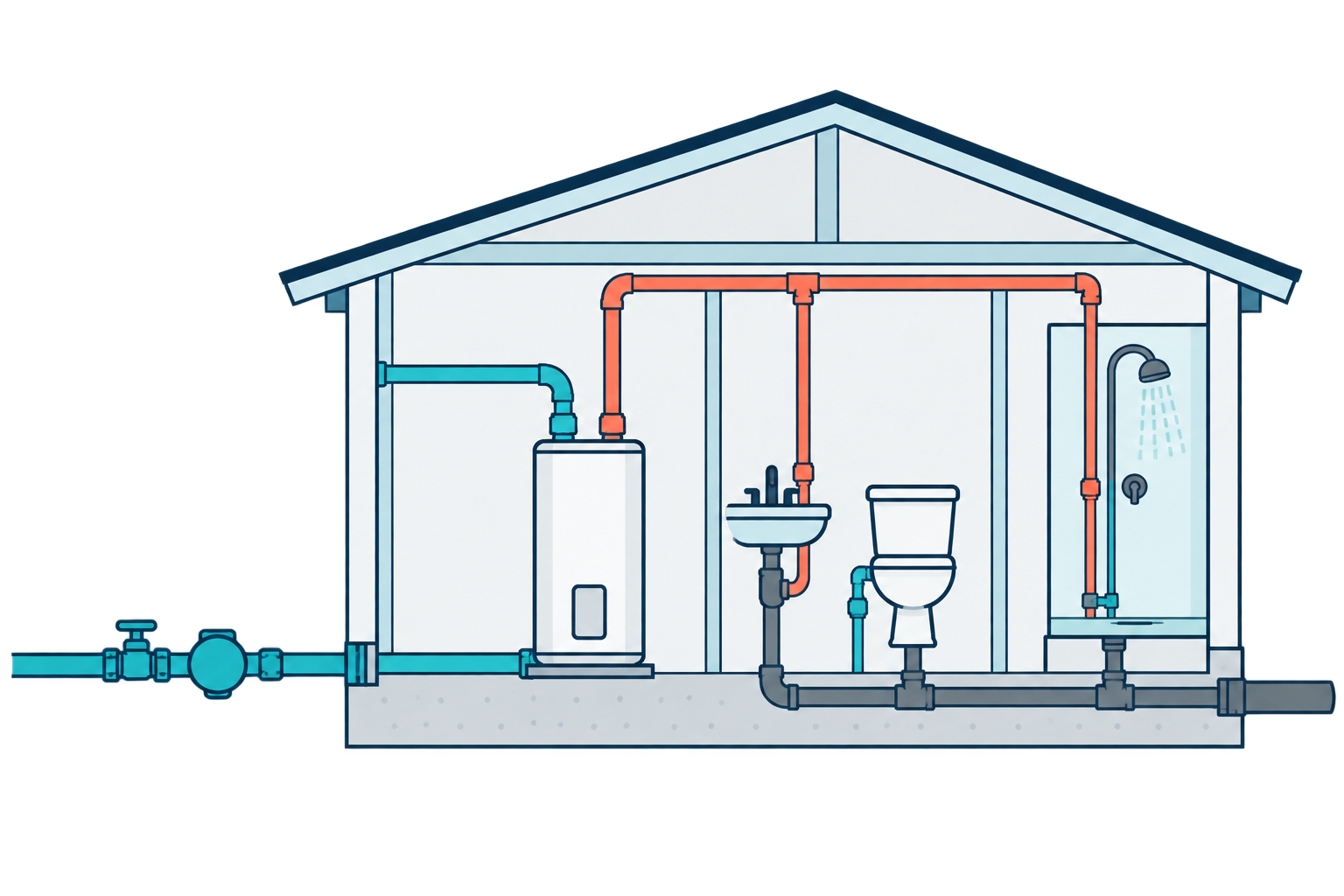

Illustration of a home's water service, water heater, plumbing fixtures and drain line.

System guide

Choosing a Pipe Size

A supply pipe needs enough inside diameter to carry peak flow without excessive velocity or pressure loss.

How to choose
Start with design flow, then compare actual inside diameters at the velocity you want.
Also check
Long runs, fittings, available pressure, and elevation can require the next size up.
Calculate Pipe Size

Start with the question

Eight Plumbing Calculation Paths

Each tool begins with different inputs and reports a separate result, method, and set of limits.

01
Pipe cross-sections with a measuring caliper

Pipe Size Calculator

Choose a nominal supply-pipe size without guessing.

You enter
Expected flow, pipe material, and velocity limit
You receive
Recommended size, inside diameter, velocity, and pressure check
Size a Supply Pipe
02
Water flowing through a pipe-mounted flow gauge

Water Flow Rate Calculator

Turn a bucket test or pipe data into a usable flow rate.

You enter
Collected volume and time, or known pipe conditions
You receive
Water flow in GPM, L/min, and L/s
Find Water Flow
03
A gently sloped drain pipe with a bubble level

Drain Pipe Slope Calculator

Plan a drain run with enough fall from end to end.

You enter
Horizontal run, pipe diameter, and available drop
You receive
Required grade, fall per length, and total drop
Plan Drain Fall
04
Water heater with cold-water inlet and hot-water outlet

Water Heater Size Calculator

Match hot-water capacity to real peak usage.

You enter
Simultaneous uses or busiest-hour demand and temperatures
You receive
Tank first-hour rating or tankless flow target
Size a Water Heater
05
Sink, toilet and shower connected to plumbing lines

Plumbing Fixture Calculator

Add a fixture schedule before sizing supply or drainage.

You enter
Plumbing code basis, fixture types, and quantities
You receive
Water-supply and drainage fixture-unit totals
Calculate Fixture Load
06
Straight-sided pipe trench shown with length, width, and depth measuring arrows

Pipe Trench Volume Calculator

Measure the excavation volume along a planned pipe route.

You enter
Pipe run, planned trench width, and planned trench depth
You receive
Excavation volume, trench footprint, and dimensions in both unit systems
Calculate Trench Volume
07
Natural-gas meter feeding a metallic pipe to a gas appliance

Gas Line Sizing Calculator

Choose a Schedule 40 natural-gas line size from its load and longest run.

You enter
Longest design length, connected appliance input, and gas heating value
You receive
Minimum nominal size and the matching capacity-table row
Size a Gas Line
08
Pressure gauge, filter, and uphill water-pipe route to an outlet

Pipe Pressure Drop Calculator

Check whether a known water-pipe run keeps enough pressure at the outlet.

You enter
Known pipe, flow, route length, elevation, and starting pressure
You receive
Friction loss, estimated end pressure, and water velocity
Check Pressure Loss

Start with a real task

Typical Plumbing Jobs and Starting Inputs

Gather the information in the middle column before you calculate. It will make the result more useful and help you know what to check next.

Starting inputs and follow-up checks for common plumbing jobs
Typical jobStart by collectingUse this tool firstCheck after the result
Extend or replace a water-supply runDesign flow, pipe material, developed length, and available pressure if knownPipe Size CalculatorActual inside diameter, velocity, fittings, elevation, and pressure loss
Check a known water pipe with weak pressure at the endKnown pipe material and size, flow, developed length, elevation, and running pressurePipe Pressure Drop CalculatorActual pipe bore and condition, fittings, filters, device loss, and the required outlet pressure
Size a Schedule 40 natural-gas pipe segmentLongest design length, downstream appliance input ratings, and utility heating valueGas Line Sizing CalculatorFuel, pipe material, pressure, local code table, utility requirements, and final installation details
Investigate weak flow at one fixtureA known container volume, fill time, and whether other fixtures were runningWater Flow Rate CalculatorPressure, restrictions, valves, pipe condition, and simultaneous demand
Run a new horizontal drainHorizontal developed length, pipe diameter, available vertical drop, and adopted code basisDrain Pipe Slope CalculatorUniform fall, cleanouts, fittings, and local drainage requirements
Choose a heater for a busy household periodSimultaneous hot-water uses, inlet-water temperature, and desired outlet temperatureWater Heater Size CalculatorFirst-hour rating, recovery, fuel or electrical capacity, and manufacturer data
Plan plumbing for a new fixture groupFixture types, quantities, line role, and the adopted plumbing codePlumbing Fixture CalculatorThe accepted demand method before sizing supply piping or drainage
Plan the excavation for a pipe routePipe-route length plus planned trench width and depthPipe Trench Volume CalculatorProject trench dimensions, required cover, site conditions, and safety requirements

Plumbing Calculator Methodology & Limits

These are planning and sizing aids. The adopted plumbing code, local amendments, site conditions and manufacturer requirements govern an installation. Check each result against your project’s actual pressure, demand, permitted sizing method, and adopted code; it does not establish code compliance everywhere.

Practical answers

Plumbing Calculator FAQs

Use these answers to choose a starting point and understand what a result means.

Should I start with fixture units or water flow when sizing a supply pipe?

Use fixture units when you are starting with a fixture schedule and an accepted demand method. Use water flow when design GPM or L/min is already known or has been measured. Pipe sizing comes after design flow is established.

Is nominal pipe size the same as the inside diameter?

No. Nominal size is a trade name. The actual inside diameter changes with pipe material and wall thickness, and that actual bore is what affects velocity and pressure loss.

Can pressure alone tell me how much water flow I have?

No. Flow also depends on pipe diameter, developed length, fittings, elevation, valves, and how much water other fixtures are using at the same time.

How can I measure water flow with a bucket and stopwatch?

Collect water in a container with a known volume and time the fill. Divide the volume by the fill time, then convert to GPM, L/min, or L/s. Repeat the test at the same fixture for a more dependable result.

What should I check before relying on a calculator result?

Confirm the entered units, pipe material, actual dimensions, available pressure, fixture assumptions, and adopted local code. A calculator supports a decision; site conditions and project requirements still govern the installation.
